51X Rack

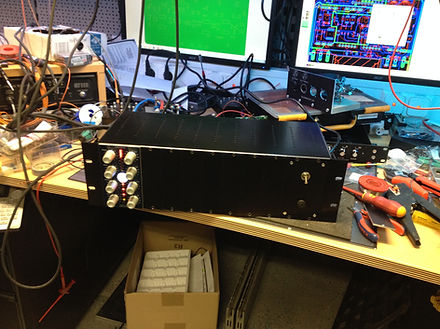

DIY 51x Rack
The "NRG CASE" can also work as a 51x Rack.
https://shop.frontpanels.de/?k=71
You need:
3U nrg case
2x rack ears
4x mounting rails with M3 threads (to fix the API modules)
1x middle panel (to fix the edac edge connectors
Optional:
You could use any 4 or 5 rail PSU designer.
Either put it into the case (there is enough space)
Or make a psu in an external box
Here is a pcb for a 5 rail psu:
https://jlmaudio.com/shop/powerstation-5-rail-power-supply-kit-v5-easy-mount.html?display_tax_prices=1
2 Slot PSU
The "NRG CASE" can also work as a 51x Rack.
https://shop.frontpanels.de/?k=71
You need:
3U nrg case
2x rack ears
2x mounting rails with M3 threads (to fix the API modules)
1x middle panel (to fix the edac edge connectors
Optional:
PSU as a 2-slot design

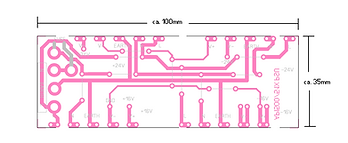

I made a small pcb to wire the 4 small meanwell PSUs.
(can be done with simple wires, aswell)
